Precision Txhaj Molding Ntsia Hlau rau Yas Txhaj Tshuab

Feem ntau siv txhaj tshuaj molding ntsia hlau qauv:

Tus nqi txhaj tshuaj (g)	Ntsia Hlau Diameter X Length (mm)	Barrel Diameter X Length (mm)	Tus nqi txhaj tshuaj (g)	Ntsia Hlau Diameter X Length (mm)	Barrel Diameter X Length (mm)
30-90 : kuv	30 x 900	ib 85x860	80-125 : kuv	75x1825 ua	Φ170x1725
60-125 : kuv	35x910 ua	ib 85x860	100-150	Φ80x2000	Φ180x1805
100-150	38 x935	wb 95x900	125-200 Nws	Φ85x2300	Φ190x1900
125-160 : kuv	40 x980	wb 95x910	200-300	Φ90x2700	Φ210x2000
125-300 Nws	42 x 1030	Φ105X1110	250-500	Φ100x2600	Φ230x2405
250-400 Nws	Φ45x1210	Φ115x1165	300-600	Φ110x2600	256x2590 ua
300-500	Φ50x1300	Φ125x1260	400-1000 Nws	Φ120x2800	Φ256x2800
450-600 Nws	55x1335 :ua	Φ130x1320	600-800	Φ130x3010	wb 256x2970
500-700	56x1350 ua	Φ130x1350	800-1000	Φ145x3010	Φ256x3200
500-700	60 x 1380	Φ140x1350	1000-1500	Φ160x3500	Φ270x3200
650-800 Nws	65x14 15	Φ150x1420	1300-2500 Nws	Φ170x3415	317x3380 ua
700-1000 Nws	70x1790 ua	Φ160x1685

NanhaiyaKev txhaj tshuaj molding screws yog ua los ntawm 38CrMoALA alloy steel, kho cua sov, haum rau kev ua cov yas tsis muaj corrosive xws li PE thiab PP, nrog lub neej kev pab cuam ntawm kwv yees li 10,000-20,000 teev. Tom qab quenching thiab tempering, shear hnav tsis kam yog nce los ntawm 50%, ua rau lawv tsim nyog rau kev ua cov yas muaj zog iav fiber ntau (≤30%) (xws li PA + iav fiber). Peb nitrid txhaj tshuaj molding screws, ua cov roj nitriding ntawm 500-560 ℃ los ua ib txheej nitrided nrog lub thickness ntawm 0.5-0.8 hli (hardness 950-1050HV), uas tuaj yeem txhim kho hnav tsis kam los ntawm 30% -40%.

Txhaj molding screws tuaj yeem siv rau:PE, PP, PS, ABS. Daim ntaub ntawv muaj xws li: PVC yeeb nkab fittings, yas qhov rooj thiab qhov rais accessories; PA automotive engine peripheral qhov chaw; PBT LED teeb tuav thiab hluav taws xob txuas; thiab iav fiber reinforced PA thiab carbon fiber reinforced PC khoom.

View as

Mutant Txhaj Molding Ntsia Hlau

Zhoushan Nanhaiya Plastic Machinery Co., Ltd. yog ib lub tuam txhab ua lag luam ntxov tshaj plaws hauv Suav teb tshwj xeeb hauv Mutant Txhaj Molding Ntsia Hlau thiab cov thoob rau sol-gel molding tshuab. Nrog rau ntau tshaj kaum xyoo ntawm kev paub nyob rau hauv plastics machinery, peb cov khoom zoo, precision-engineered khoom tau txais peb kev ntseeg siab ntawm cov neeg muas zaub thoob ntiaj teb. Peb tus nqi zoo tshaj rau peb cov kev hloov pauv kev txhaj tshuaj molding screws caters rau ntau lub khw. Peb tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.

Saib Ntxiv >> Xa lus nug >>

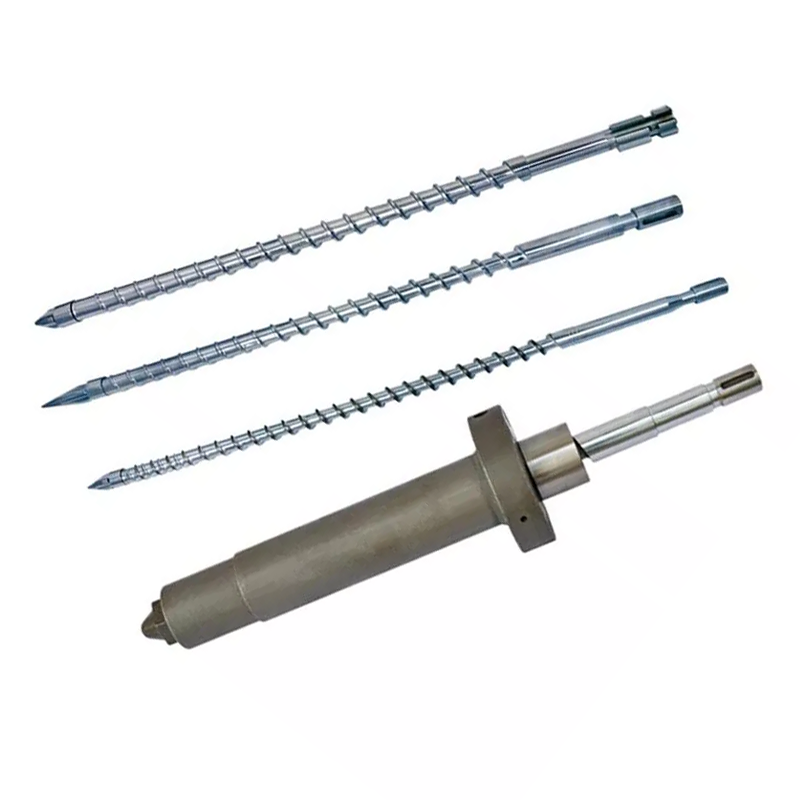

Gradual Txhaj Molding Ntsia Hlau

Zhoushan Nanhaiya Plastic Machinery Co., Ltd. yog ib qho ntawm cov kws tshaj lij kev lag luam hauv Suav teb tshwj xeeb hauv kev txiav txim siab precision screws thiab chim rau sol-gel molding tshuab. Nrog rau ntau tshaj kaum xyoo ntawm kev paub nyob rau hauv plastics machinery, peb cov khoom zoo, precision-engineered khoom tau txais peb kev ntseeg siab ntawm cov neeg muas zaub thoob ntiaj teb. Peb tus nqi zoo tshaj rau peb cov kev txhaj tshuaj molding maj mam caters rau ntau lub khw. Peb tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.

Saib Ntxiv >> Xa lus nug >>

Txhaj Molding Ntsia Hlau los ntawm Nanhaiya muaj cov kev daws teeb meem zoo, ruaj khov nrog kev xa khoom sai thiab kev xaiv tsim kev cai. Tiv tauj peb hnub no rau tus nqi sib tw.
