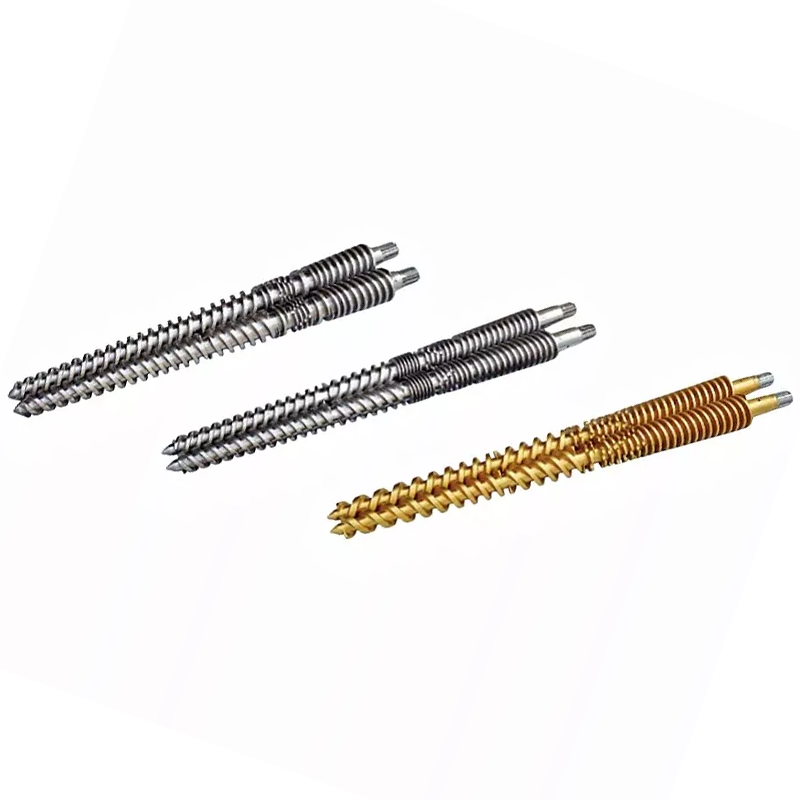

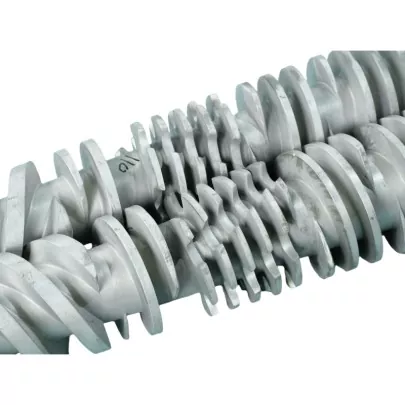

Non-intermeshing Conical Twin Ntsia Hlau

Qhov no tsis yog-intermeshing conical ntxaib ntsia hlau yog tsim los ntawm 38CrMoAla steel. Cov khoom siv raw yog qhov tseem ceeb rau kev ua haujlwm ntawm cov ntsia hlau, thiab peb xaiv cov hlau uas muaj zog thiab hnav-resistant los ntawm cov neeg tsim khoom nrov hauv Suav teb uas ua tau raws li cov qauv hauv tebchaws (GB / T 3077).

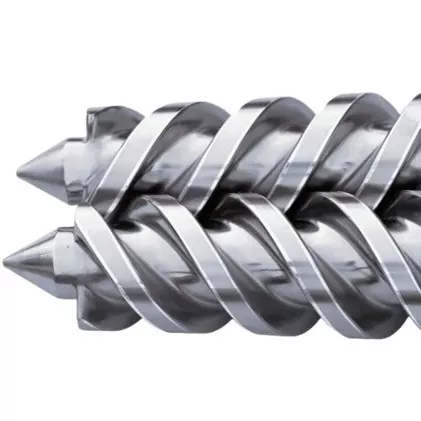

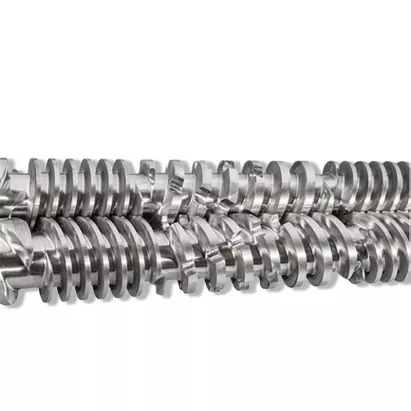

Nanhaiya's non-intermeshing conical ntxaib-ntsia hlau extruders muaj cov davhlau tsis cuam tshuam. Qhov kev tshem tawm ntawm cov ntsia hlau thiab nruab nrab ntawm cov ntsia hlau thiab lub taub hau yog loj (feem ntau 0.5-2 hli), thiab cov kev tshem tawm no tuaj yeem hloov kho raws li cov khoom siv kom tsis txhob raug quab yuam extrusion thiab shearing txuam nrog intermeshing screws. Cov screws yog tapered, nrog diameters maj mam txo los ntawm qhov pub kawg mus rau qhov kawg paug. Ob lub screws tig ntawm nws tus kheej (nrog adjustable speeds). Cov khoom yog xa tawm feem ntau los ntawm kev sib txhuam thiab axial thrust los ntawm cov rotating screws, es tsis yog los ntawm "them" kev txiav txim ntawm intermeshing flights. Relying feem ntau ntawm cov khoom ntws hauv cov ntsia hlau channel thiab qhov sib xyaw me me ntawm convection sib xyaw, qhov sib txawv ntawm cov khoom siv ntxiv (xws li masterbatches thiab fillers) tsis zoo, ua rau nws tsis tsim nyog rau cov khoom uas xav tau kev sib xyaw ua haujlwm siab (xws li cov yeeb yaj kiab thiab cov yeeb yaj kiab zoo heev).

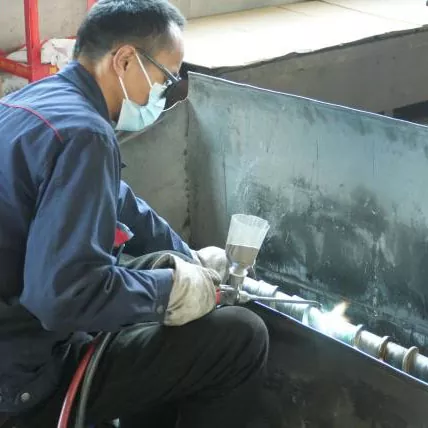

Nanhaiya's non-intermeshing conical twin ntsia hlau chim tau dhau los ntau R & D thiab kev txhim kho thiab tam sim no tau koom ua ke rau hauv ntau cov tuam txhab tsim cov kab ntau lawm, ua tiav kev ua tau zoo ntawm lub xeev. Peb muab 1-2 xyoo warranty, nyob ntawm seb cov khoom siv tshwj xeeb ntxiv piv. Nanhaiya cov thoob tau txais cov txheej txheem nitriding, nrog rau 2 hli tuab txheej ntawm npib tsib xee-tungsten alloy txau-welded rau ntawm qhov chaw hnav khaub ncaws feem ntau. Qhov no ua rau kom qhov tawv tawv ntawm lub thoob los ntawm HRC55-60 mus tshaj HRC65, txhawb nqa kev hnav tsis kam los ntawm 2-4 zaug.

Parameter (Specification)

Feature thiab Application

Non-intermeshing conical twin-screw extruders, vim tsis muaj intermeshing davhlau shear, muaj kev paub tsis tshua muaj neeg kho tshuab shear quab yuam nyob rau hauv cov ntsia hlau dua intermeshing ntxaib-ntsia hlau extruders. Qhov no zoo tiv thaiv degradation los yog fiber ntau tawg ntawm shear-sensitive cov ntaub ntawv (xws li low-melting-point plastics thiab fiber-reinforced cov ntaub ntawv).

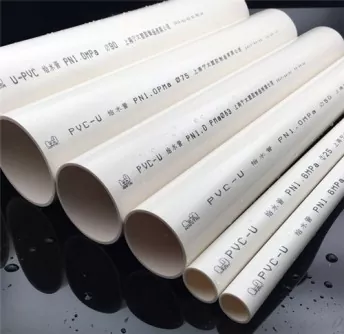

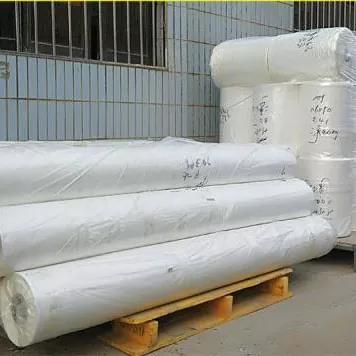

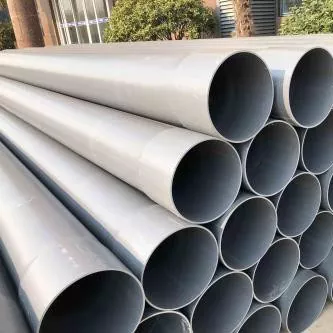

Lawv feem ntau yog siv los tsim cov khoom lag luam yam tsis muaj cov khoom siv ntxiv, xws li cov kav dej PVC txheem, PE zaj duab xis ua liaj ua teb, thiab cov pas nrig yas yooj yim, qhov kev sib xyaw ua haujlwm siab tsis tas yuav ua kom tau raws li qhov yuav tsum tau ua. Lawv cov ntsia hlau sib sib zog nqus grooves thiab siab conveying muaj peev xwm muab qhov ruaj khov, siab ntim cov dej ntws, ua rau lawv tsim nyog rau cov ntawv thov uas xav tau cov zis siab tab sis tsis xav tau kev sib xyaw ua ke, xws li cov kav dej PVC loj (piv txwv li, DN300 thiab siab dua) thiab cov ntawv tuab-walled yas.

Khoom Paub meej
