Non-intermeshing Parallel Twin Screw chim

Nanhaiya Non-Intermeshing Parallel Twin Screw Barrel tau raug tsim los rau PVC, PE, thiab WPC extrusion kab. Txij li thaum nws pib ua tus kws tshaj lij ntsia hlau thoob cov chaw tsim khoom hauv Suav teb hauv xyoo 2014, Nanhaiya tau ua qhov tseem ceeb ntawm kev xa cov kev daws teeb meem saum toj kawg nkaus uas tsis yog tus nqi sib tw xwb tab sis kuj ua kom ruaj khov. Thaum cov neeg siv khoom txiav txim siab los yuav cov Non-Intermeshing Parallel Twin Screw Barrel los ntawm Nanhaiya, lawv tau nqis peev hauv cov khoom lag luam muaj npe nrov rau nws qhov zoo tshaj plaws torque tshuav nyiaj li cas, cov txiaj ntsig zoo tshaj plaws, thiab kev ua haujlwm ntev. Cov cwj pwm no ua rau nws mus rau kev xaiv rau cov neeg siv khoom thoob ntiaj teb hauv kev nrhiav cov cuab yeej siv tau zoo thiab ua tau zoo extrusion.

Xa lus nug

Product Description

Nanhaiya Non-Intermeshing parallel ntxaib ntsia hlau chim khiav thaum uas tig mus tab sis tsis intermesh, txo shear thaum tswj cov khoom thauj zoo ib yam. Qhov kev teeb tsa no tiv thaiv cov cua kub ntau dhau thiab khaws cov khoom siv. Lub thoob yog tsim los ntawm hwm alloy steel, lined nrog npib tsib xee-tungsten carbide, thiab precision-machined kom nruj tolerances. Nws yog tsim rau polymer compounding, WPC ntau lawm, thiab cov ntaub ntawv uas yuav tsum tau ceev faj tuav thaum extrusion.

Khoom Parameter (Specification)

Khoom siv	38CrMoAlA
Thaum tshav kub kub kho Hardness	HB260-320
Nitriding Hardness	HV950-1000
Nitriding qhov tob	0.50-0.70 hli
Nitriding Brittleness	≤ Qib 1
Roughness	Rau 0.4
Ntsia Hlau Ncaj	0.015 hli
Chrome Plating Hardness	HV ≥ 950HV
Chrome Thickness	0.05-0.10 hli
Bimetal Hardness	HRC60-65
Bimetal Qhov tob	2.0-3.0 hli

Khoom Feature thiab Daim Ntawv Thov

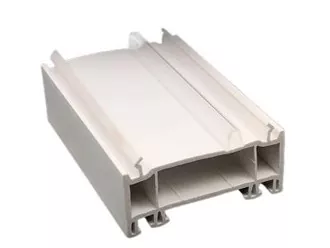

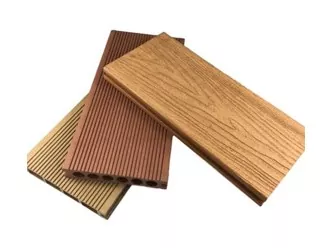

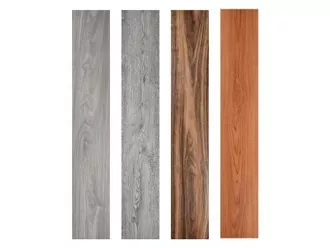

Non-intermeshing chim yog siv qhov uas tsis tshua muaj shear thiab maj mam sib tov. Lawv yog cov zoo tagnrho rau PVC profiles, WPC decking, thiab rhiab thermoplastics. Lub thoob tso cai rau cov neeg muab tub lim ntau dua thaum tswj cov khoom ncaj ncees thiab cov khoom zoo ib yam.

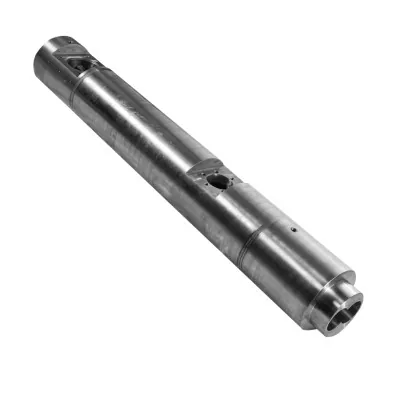

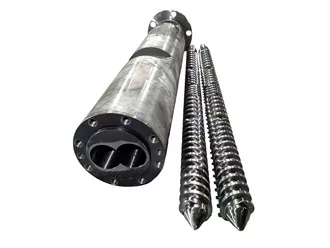

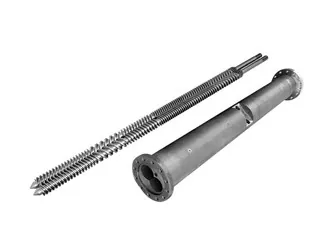

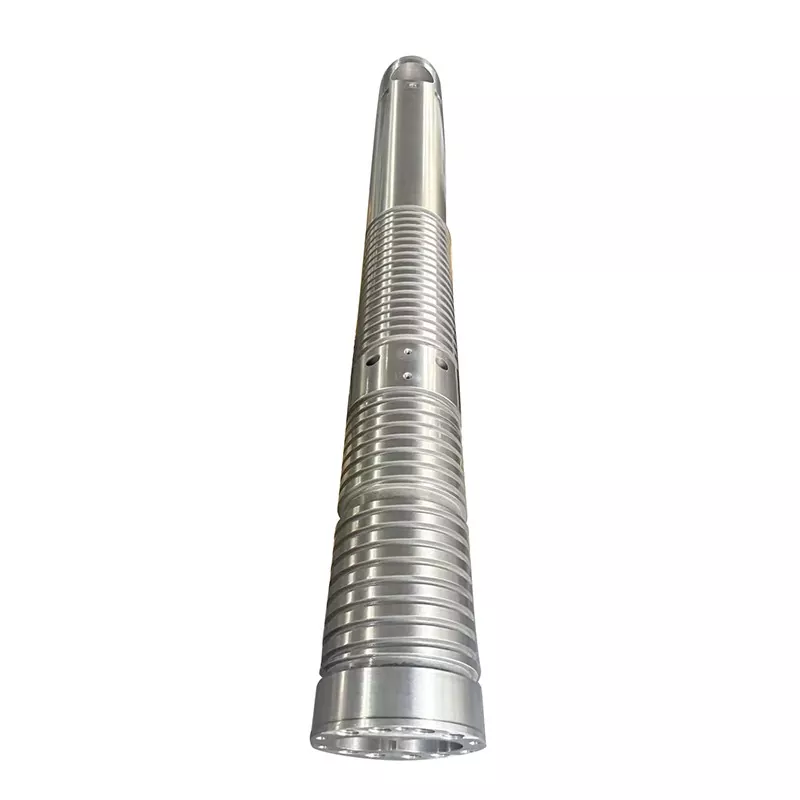

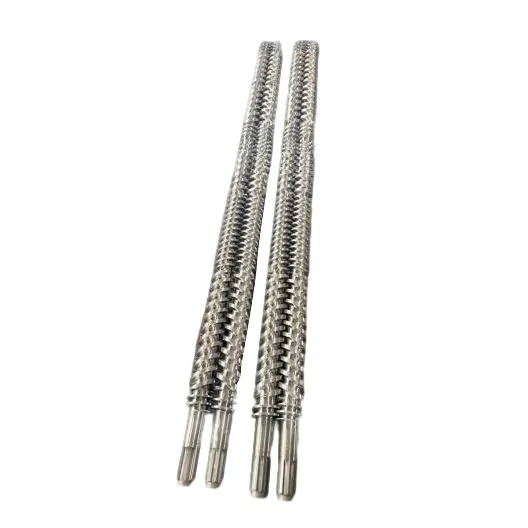

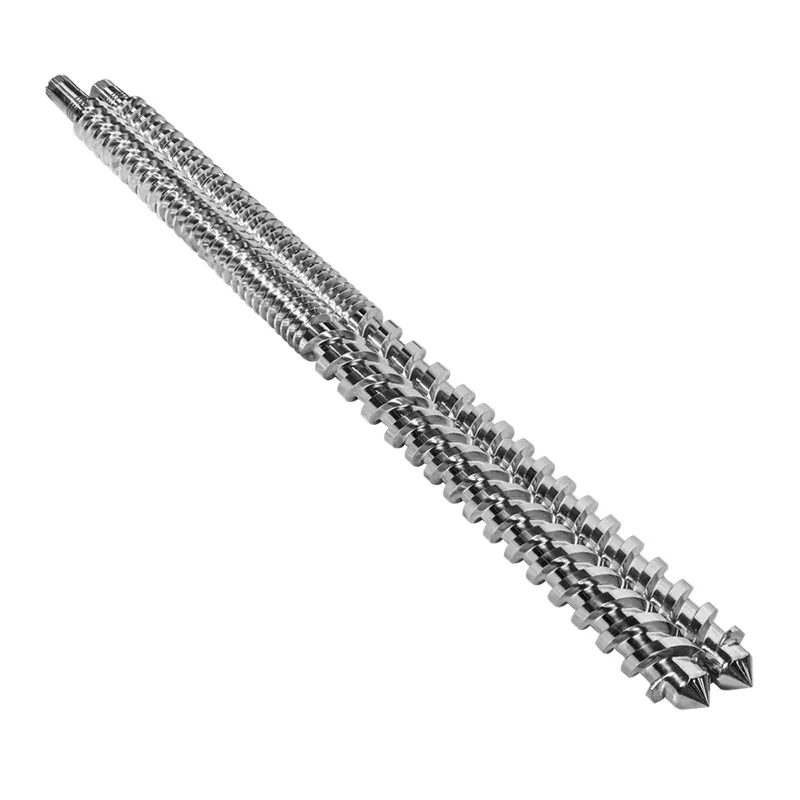

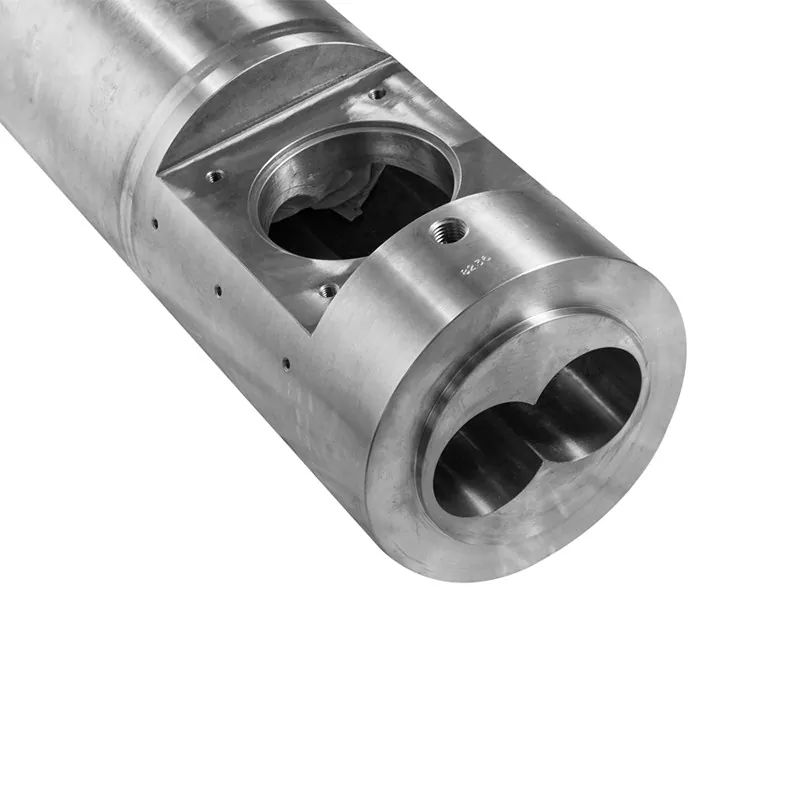

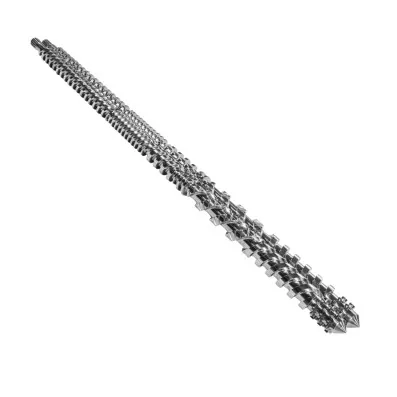

Non-Intermeshing Parallel Twin Screw Barrel

Cov Lus Qhia Ntau Lawm

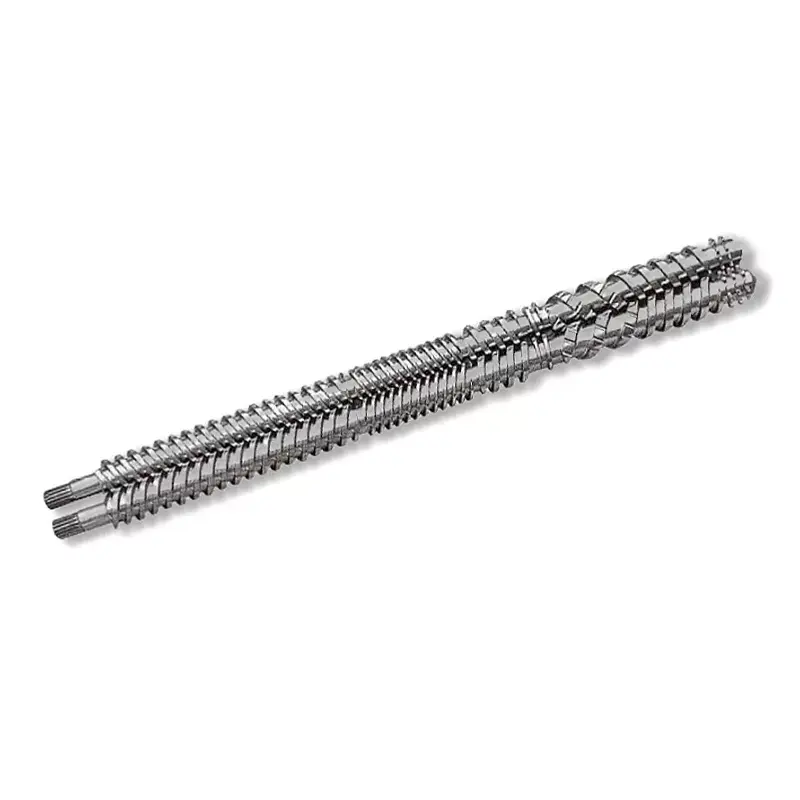

Txhua Nanhaiya parallel ntxaib ntsia hlau chim tau dhau los ua CNC machining thiab precision sib tsoo. Qhov saum npoo yog daim iav tiav kom txo qis kev sib txhuam thiab txhim kho cov yas ntws. Lub dav hlau ntsia hlau yog hardened los ntawm nitriding los yog bimetallic alloy txheej rau lub sij hawm ntev stability.
