Super Wear-Resistant Ib Ntsia Hlau

Qhov zoo tshaj plaws hnav tsis kam pib nrog zoo Super Wear-Resistant Single Screw. Peb xaiv premium nitrided steel (xws li 38CrMoAlA) kom ntseeg tau tias cov tub ntxhais muaj zog thiab ruaj khov, muab lub hauv paus ruaj khov rau saum npoo ntxiv.

Xa lus nug

Product Description

Khoom Parameters

Parameter	Paub meej
Ntsia Hlau Diameter	Cov kev qhia tshwj xeeb muaj xws li 35mm, 45mm, 65mm, 75mm, 85mm, 90mm, thiab lwm yam. Piv txwv li, thaum ua cov kav dej PVC, 65mm ntsia hlau yog dav siv raws li nws ua tiav qhov sib npaug ntawm cov zis thiab lub zog noj.
Ntev-rau-Diameter Ratio (L/D Ratio)	Feem ntau ntawm 20: 1 txog 30: 1. Rau cov khoom kub-rhiab zoo li PVC, L / D piv feem ntau yog 20: 1 thiab 25: 1. Qhov no ua kom cov plasticization txaus thaum txo lub sijhawm nyob ntawm cov ntaub ntawv hauv lub thoob kom txo tau qhov kev pheej hmoo ntawm decomposition.
Compression Ratio	Feem ntau poob ntawm 3.5: 1 thiab 4.5: 1. Qhov loj compression ratio pab txhawb cov yas tag nrho thiab compaction ntawm PVC cov ntaub ntawv.
Screw Channel qhov tob	Cov ntsia hlau channel yog qhov ntiav, tshwj xeeb tshaj yog nyob rau hauv metering seem. Qhov kev tsim no txo cov sij hawm nyob ntawm cov ntaub ntawv thiab txo qhov muaj peev xwm ntawm decomposition.
Tus naj npawb ntawm cov cua sov thiab cua txias	Nws txawv raws li txoj kab uas hla ntawm cov ntsia hlau thiab cov khoom siv tshwj xeeb, feem ntau yog li ntawm 5 mus rau 6 thaj chaw. Piv txwv li, ib leeg-ntsia hlau extruder nrog 65mm ntsia hlau txoj kab uas hla tuaj yeem muaj 6 qhov cua sov thiab cua txias kom pab tswj qhov kub thiab txias hauv txhua ntu.
Ntsia Hlau Ceev	Qhov ntau yam ceev yuav tsum tau kho raws li qhov tshwj xeeb ntsia hlau txoj kab uas hla thiab ntau lawm yuav tsum tau. Rau φ65mm ntsia hlau, thaum tsim cov kav dej nrog 3 hli phab ntsa tuab, qhov kev pom zoo ceev yog tswj nyob rau hauv thaj tsam ntawm 25-35rpm.
Tsav zog	Muaj feem xyuam rau txoj kab uas hla thiab cov zis. Piv txwv li, ib leeg-ntsia hlau extruder nrog 65mm ntsia hlau txoj kab uas hla feem ntau muaj lub zog tsav ntawm 45-90kw.
Ua haujlwm kub	Qhov kub ntawm qhov chaw pub mis yog feem ntau 160-170 ℃, seem melting yog 180-190 ℃, thiab lub taub hau tuag yog 175-185 ℃.

Khoom Feature Thiab Daim Ntawv Thov

1. Ob-hlau Super Wear-Resistant Ib Screw, Siv cov hlau muaj zog ua cov khoom siv hauv paus, 38CrMoAlA, SACM645, 42CrMo thiab lwm yam, High-density forged steel substrate

2. Alloy super hnav-tiv taus chim, Lub puab qhov ntawm cov pa roj carbon steel substrate yog centrifugally cam khwb cia los yog ib txheej ntawm hnav-resistant alloy, Lub hardness ntawm lub alloy tshaj HRC 60.

3. Rau qhov tshwj xeeb hnav khaub ncaws hnav, peb muab kev lees paub ntawm cov khoom lag luam lifespan.

Super hnav-resistant chim ntsia hlau, haum rau iav fiber reinforced plastics (GF), muaj calcium carbonate, talc hmoov, high-performance cov ntaub ntawv, recycled pov tseg, thiab corrosive plastics, thiab lwm yam.

4. Muaj feem xyuam rau ntau yam ntaub ntawv, GFPA GFPBT GFPPS GFPP GFPOM CF PPS ...

Cov Lus Qhia Ntau Lawm

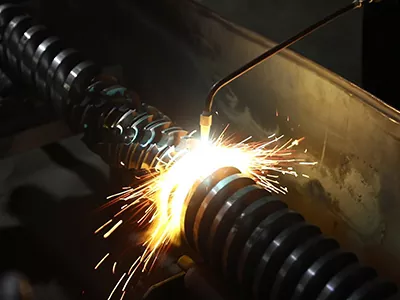

1. PTA yog siv los ua welding nyob rau sab saum toj thiab sab saum toj ntawm cov xov ntawm cov ntsia hlau, uas yog cov chaw nyiam hnav.

2. Ion nitriding results in a denser microstructure and higher hardness (up to HV1000-1200), with less deformation.

3.Qhov saum npoo ntawm cov ntsia hlau yog txau los yog coated nrog tungsten carbide (WC), npib tsib xee-raws li alloys, thiab lwm yam.Lub neej kev pab cuam yuav nce 3 mus rau 8 zaug.
