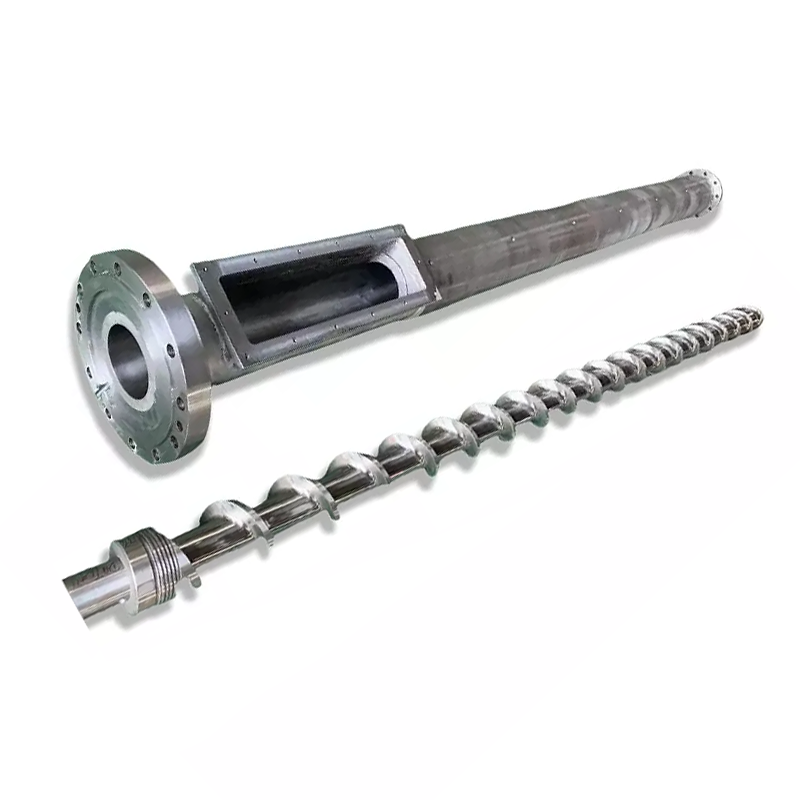

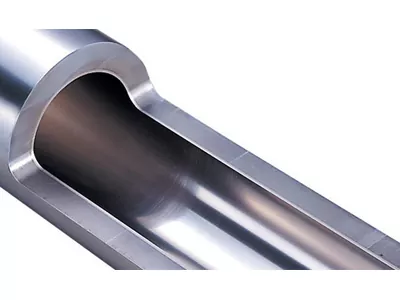

Aluminium-Plastic Vaj Huam Sib Luag Ib Screw

Lub Aluminium-Plastic Vaj Huam Sib Luag Ib Screw ncaj qha txiav txim siab qhov zoo ntawm cov tub ntxhais txheej, kev ua haujlwm ntau lawm thiab tus nqi.Qhov tshwj xeeb aluminium-yas board ua los ntawm peb lub tuam txhab siv ib qho ntsia hlau extruder. Cov sib tov yog rhuab, sheared, melted thiab homogenized nyob rau hauv ib tug ntsia hlau extruder, uas ua rau ib tug uniform melt.Ua kom zoo stability.

Xa lus nug

Product Description

Cov Lus Qhia Ntau Lawm

1. Txoj kab uas hla ntawm Aluminium-Plastic Vaj Huam Sib Luag Ib Screw yog txiav txim siab raws li qhov dav ntawm aluminium-yas board thiab cov khoom yuav tsum tau ua. Qhov ntau thiab tsawg muaj xws li Φ65mm, Φ90mm, Φ120mm, Φ150mm, thiab lwm yam.

2. Qhov saum npoo ntawm cov ntsia hlau ib leeg yog kho kom siab du, thiab cov dej ntws tau polished los tiv thaiv cov adhesion thiab degradation ntawm cov ntaub ntawv, yog li tsis txhob tsim cov pob dub.

3. Qhov tshwj xeeb aluminium-yas board sib txuam cov ntsia hlau tsim nta lub taub hau ntsia hlau thiab ib qho sib xyaw pinion. Lub taub hau ntsia hlau txais cov duab torpedo los yog ib puag ncig zoo kom tsis txhob tuag cov ces kaum thiab tiv thaiv cov khoom los ntawm kev daig thiab decomposing.

Khoom Parameters

Parameter	Paub meej
Ntsia Hlau Diameter	Cov kev qhia tshwj xeeb muaj xws li 35mm, 45mm, 65mm, 75mm, 85mm, 90mm, thiab lwm yam. Piv txwv li, thaum ua cov kav dej PVC, 65mm ntsia hlau yog dav siv raws li nws ua tiav qhov sib npaug ntawm cov zis thiab lub zog noj.
Ntev-rau-Diameter Ratio (L/D Ratio)	Feem ntau ntawm 20: 1 txog 30: 1. Rau cov khoom kub-rhiab zoo li PVC, L / D piv feem ntau yog 20: 1 thiab 25: 1. Qhov no ua kom cov plasticization txaus thaum txo lub sijhawm nyob ntawm cov ntaub ntawv hauv lub thoob kom txo tau qhov kev pheej hmoo ntawm decomposition.
Compression Ratio	Feem ntau poob ntawm 3.5: 1 thiab 4.5: 1. Qhov loj compression ratio pab txhawb cov yas tag nrho thiab compaction ntawm PVC cov ntaub ntawv.
Screw Channel qhov tob	Cov ntsia hlau channel yog qhov ntiav, tshwj xeeb tshaj yog nyob rau hauv metering seem. Qhov kev tsim no txo cov sij hawm nyob ntawm cov ntaub ntawv thiab txo qhov muaj peev xwm ntawm decomposition.
Tus naj npawb ntawm cov cua sov thiab cua txias	Nws txawv raws li txoj kab uas hla ntawm cov ntsia hlau thiab cov khoom siv tshwj xeeb, feem ntau yog li ntawm 5 mus rau 6 thaj chaw. Piv txwv li, ib leeg-ntsia hlau extruder nrog 65mm ntsia hlau txoj kab uas hla tuaj yeem muaj 6 qhov cua sov thiab cua txias kom pab tswj qhov kub thiab txias hauv txhua ntu.
Ntsia Hlau Ceev	Qhov ntau yam ceev yuav tsum tau kho raws li qhov tshwj xeeb ntsia hlau txoj kab uas hla thiab ntau lawm yuav tsum tau. Rau φ65mm ntsia hlau, thaum tsim cov kav dej nrog 3 hli phab ntsa tuab, qhov kev pom zoo ceev yog tswj nyob rau hauv thaj tsam ntawm 25-35rpm.
Tsav zog	Muaj feem xyuam rau txoj kab uas hla thiab cov zis. Piv txwv li, ib leeg-ntsia hlau extruder nrog 65mm ntsia hlau txoj kab uas hla feem ntau muaj lub zog tsav ntawm 45-90kw.
Ua haujlwm kub	Qhov kub ntawm qhov chaw pub mis yog feem ntau 160-170 ℃, seem melting yog 180-190 ℃, thiab lub taub hau tuag yog 175-185 ℃.

Khoom Feature Thiab Daim Ntawv Thov

1. Nrog NHY ib leeg ntsia hlau chim rau alu-yas vaj huam sib luag, Ib qho kev cuam tshuam zoo-hom sib xyaw seem ua kom tiav melting. Xyuas kom meej tias qhov kub thiab txias yog qhov sib npaug, thiab sib npaug sib faib cov xim, nplaim hluav taws, thiab lwm yam khoom ntxiv kom lav cov xim zoo ib yam thiab ruaj khov ntawm daim ntawv.

2. Txhawm rau tiv thaiv qhov muaj zog corrosiveness ntawm nplaim retardant, qhov saum npoo ntawm ib qho ntsia hlau yog kho nrog dual alloy ntawm ntxiv dag zog rau tungsten carbide los xyuas kom meej lub sij hawm ntev stability.Aluminium-yas ib hom ntsia hlau, haum rau hom PE aluminium-yas panels, fireproof hom, nplaim-retardant hom aluminium-plastic panels, tag nrho cov-yas vaj huam sib luag. punched panels, tshwj xeeb-puab panels, thiab lwm yam.
