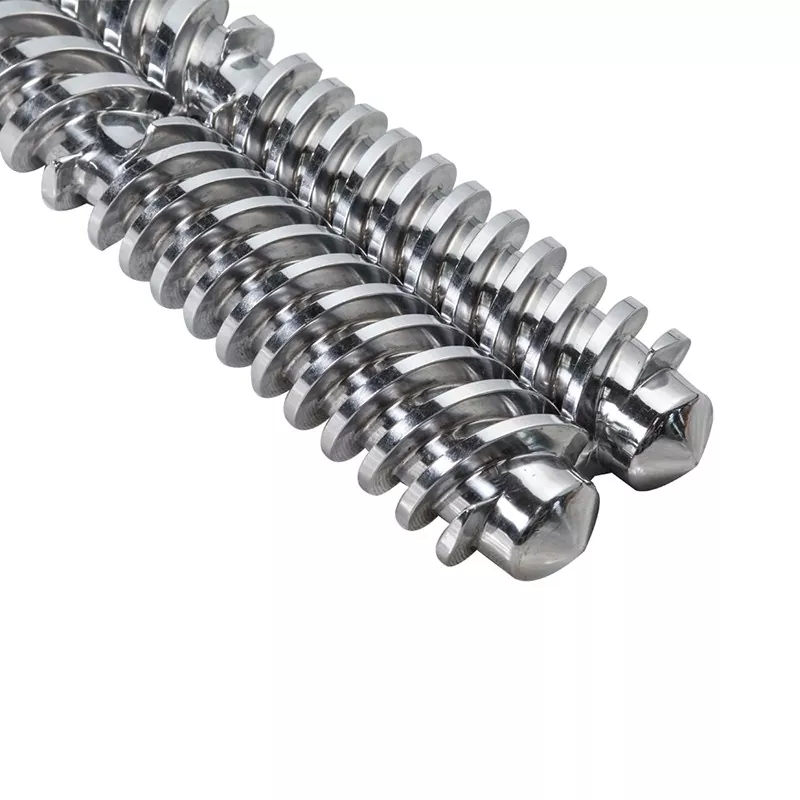

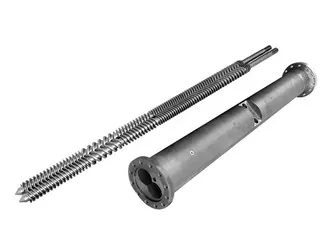

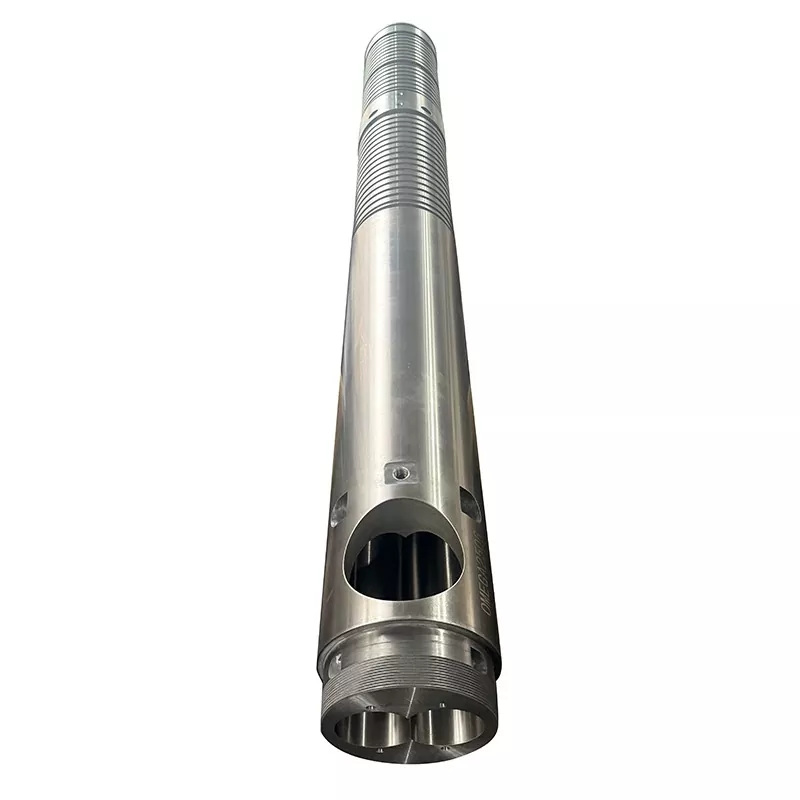

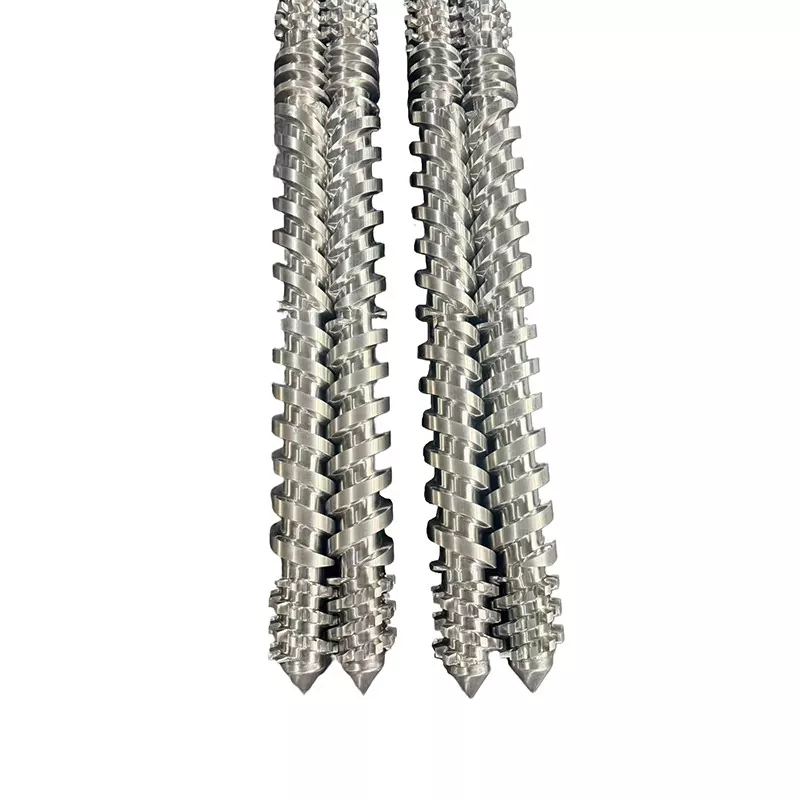

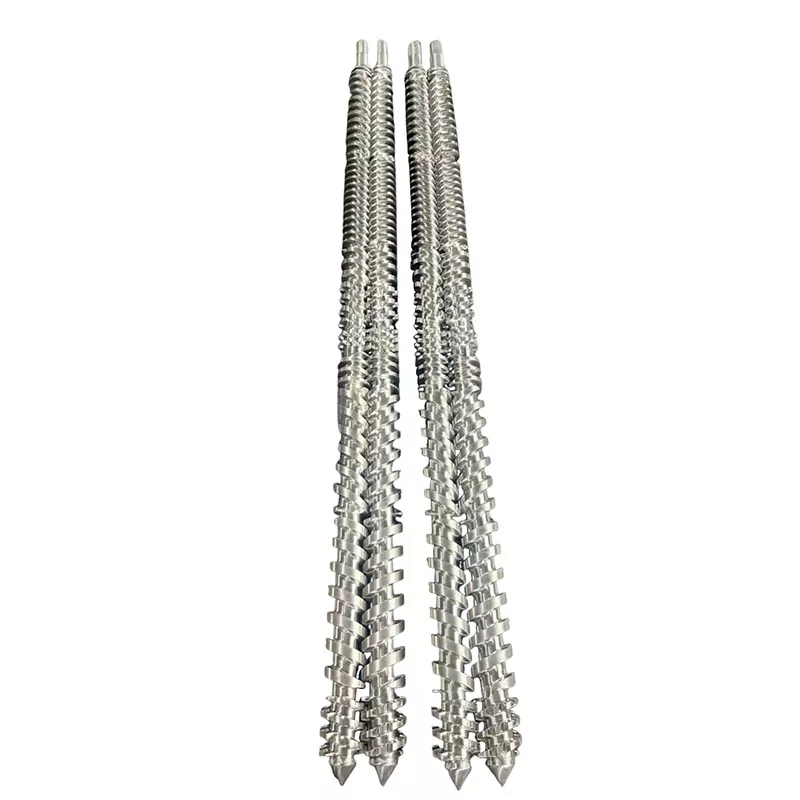

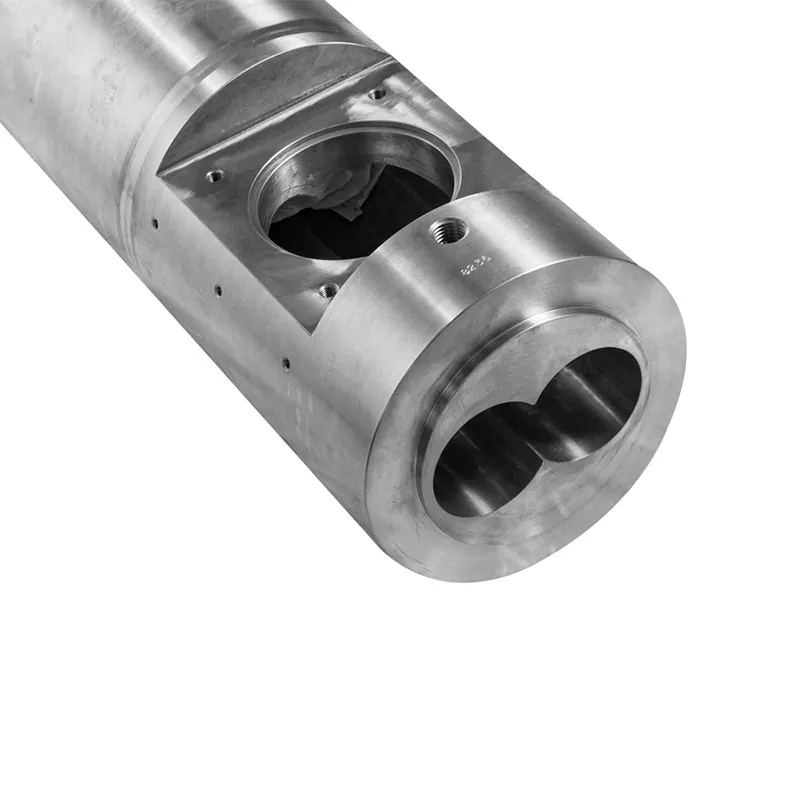

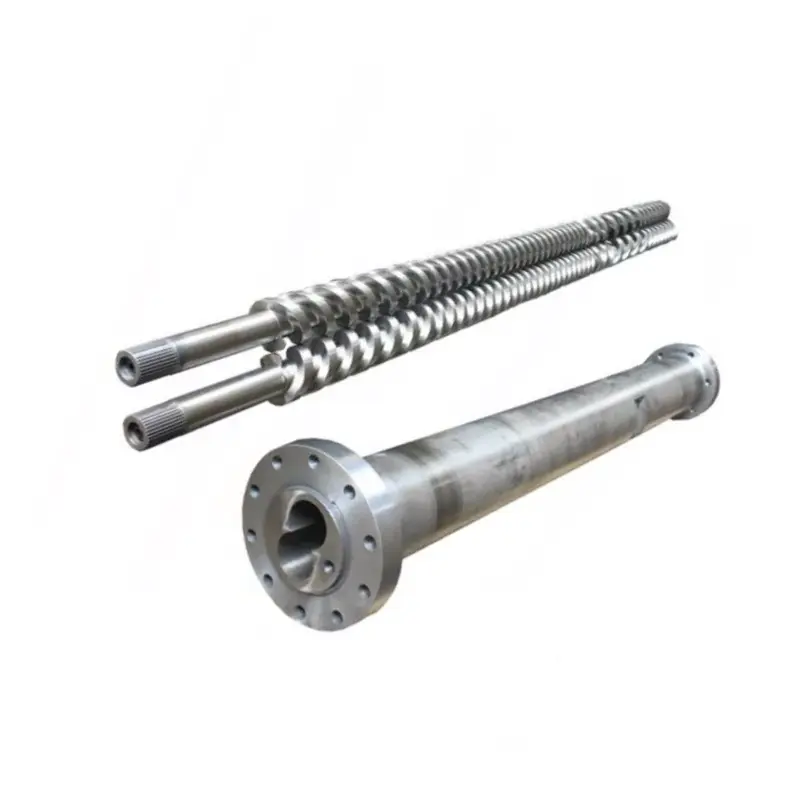

Intermeshing Parallel Twin Screw chim

Nanhaiya Intermeshing Parallel Twin Screw Barrel tau tsim tshwj xeeb rau kev siv hauv PVC, PE, thiab WPC extrusion kab. Txij li thaum dhau los ua tus kws tshaj lij cov ntsia hlau thoob cov chaw tsim khoom hauv Suav teb rov qab rau xyoo 2014, Nanhaiya tseem tau cog lus los muab cov kev daws teeb meem zoo tshaj plaws uas yog tus nqi sib tw thiab xa cov kev ua haujlwm ruaj khov. Thaum cov neeg siv khoom xaiv los yuav Nanhaiya Intermeshing Parallel Twin Screw Barrel, lawv tau xaiv cov khoom lag luam uas ua tau zoo hauv kev sib npaug ntawm lub zog, khav theeb cov txiaj ntsig zoo, thiab cog lus rau lub neej ntev. Cov yam ntxwv zoo tshaj no ua rau nws nyiam tshaj plaws rau cov neeg siv khoom thoob ntiaj teb hauv kev tshawb nrhiav cov khoom siv extrusion muaj txiaj ntsig thiab muaj txiaj ntsig.

Xa lus nug

Product Description

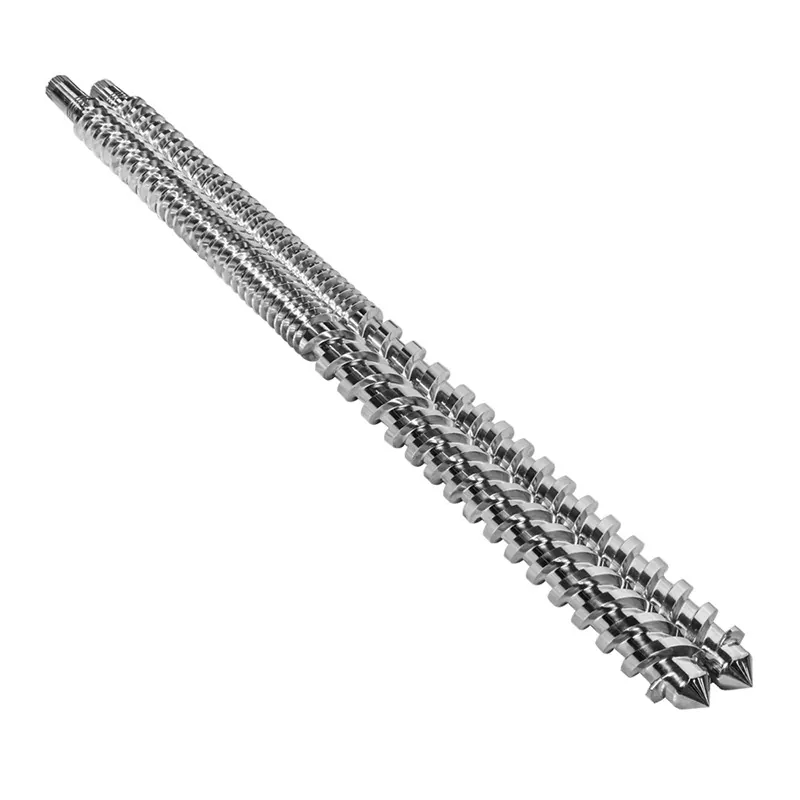

Lub Intermeshing Parallel Twin Screw Barrel tsim muaj zog compounding, kneading, thiab conveying kev txiav txim, kom ntseeg tau tias uniform yaj thiab zoo extrusion. Screw chim yog tsim los ntawm 38CrMoAlA nrog bimetallic nickel-tungsten carbide txheej rau tshwj xeeb hnav tsis kam. Qhov kev tsim no tshwj xeeb yog tsim rau PP, PVC, WPC, thiab cov khoom siv polymers uas xav tau kev sib xyaw hnyav yam tsis muaj cov khoom siv degradation.

Khoom Parameter (Specification)

Khoom siv	38CrMoAlA
Thaum tshav kub kub kho Hardness	HB260-320
Nitriding Hardness	HV950-1000
Nitriding qhov tob	0.50-0.70 hli
Nitriding Brittleness	≤ Qib 1
Roughness	Rau 0.4
Ntsia Hlau Ncaj	0.015 hli
Chrome Plating Hardness	HV ≥ 950HV
Chrome Thickness	0.05-0.10 hli
Bimetal Hardness	HRC60-65
Bimetal Qhov tob	2.0-3.0 hli

Khoom Feature thiab Daim Ntawv Thov

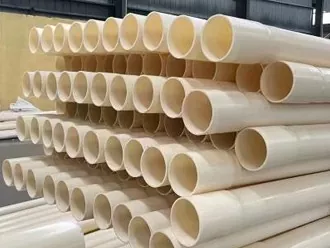

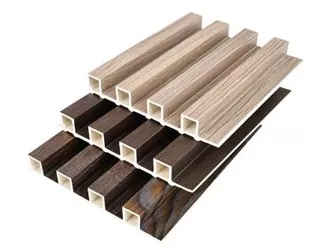

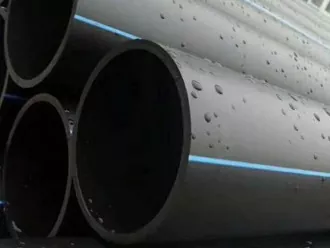

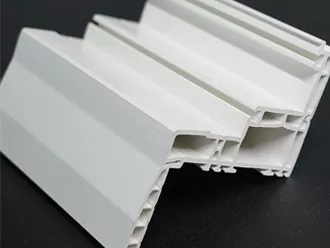

Intermeshing chim muaj siab shear sib tov, zoo ib yam melting kub, thiab txhim kho homogeneity rau cov ntaub ntawv compounded. Lawv tau siv dav hauv cov yeeb nkab, profile, thiab cov ntawv extrusion kab, tshwj xeeb tshaj yog nrog cov khoom siv rov ua dua lossis cov ntaub ntawv siab.

Cov Lus Qhia Ntau Lawm

Txhua Nanhaiya parallel ntxaib ntsia hlau chim tau dhau los ua CNC machining thiab precision sib tsoo. Qhov saum npoo yog daim iav tiav kom txo qis kev sib txhuam thiab txhim kho cov yas ntws. Lub dav hlau ntsia hlau yog hardened los ntawm nitriding los yog bimetallic alloy txheej rau lub sij hawm ntev stability.
