Mutated Planetary Ntsia Hlau

Qhov no mutated planetary ntsia hlau yog tsim los ntawm 38CrMoAla hlau. Cov khoom siv raw yog qhov tseem ceeb rau kev ua haujlwm ntawm cov ntsia hlau, thiab peb xaiv cov hlau uas muaj zog thiab hnav-resistant los ntawm cov neeg tsim khoom nrov hauv Suav teb uas ua tau raws li cov qauv hauv tebchaws (GB / T 3077).

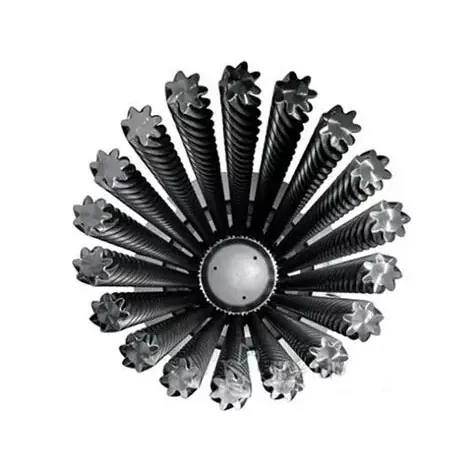

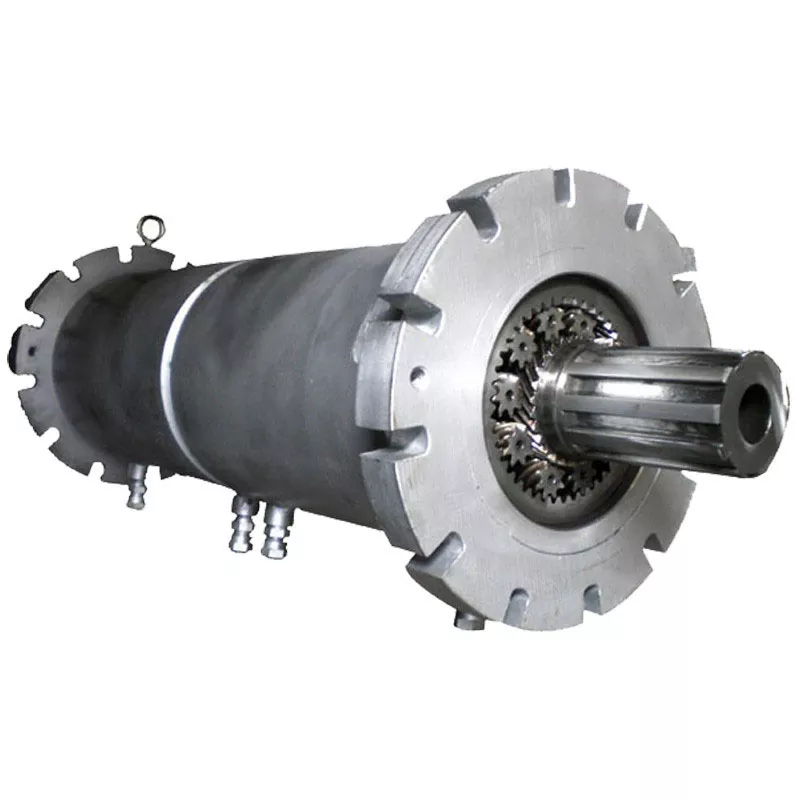

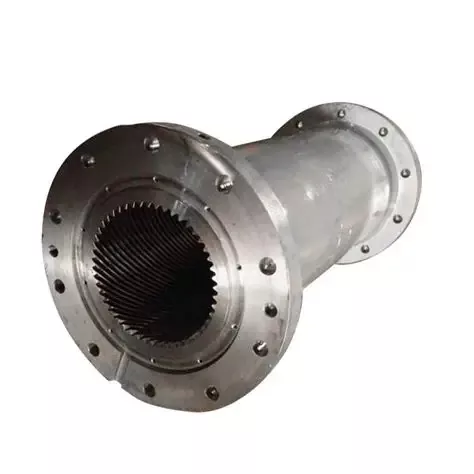

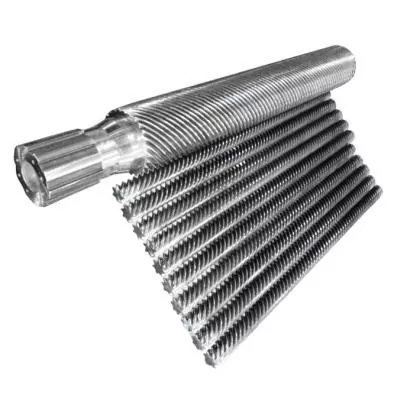

Nanhaiya lub mutated planetary ntsia hlau muaj lub hauv paus ntsia hlau, ob peb planetary screws, thiab ib lub thoob nrog cov hniav. Tus naj npawb ntawm planetary screws yog proportional rau txoj kab uas hla ntawm lub planetary ntu, feem ntau yog li ntawm 6 mus rau 18. Qhov clearance ntawm cov ntsia hlau thiab chim hniav feem ntau yog 0.2-0.4 hli. Cov ntu planetary tuaj yeem tsim los ua ob ntu ntu, nrog lub nplhaib disperser nyob nruab nrab ntawm. Lub nplhaib disperser no ua rau muaj zog rov qab, txhim kho cov khoom shear, txhawb kev yaj ua ntej, thiab txhim kho kev sib xyaw thiab kev ua haujlwm degassing.

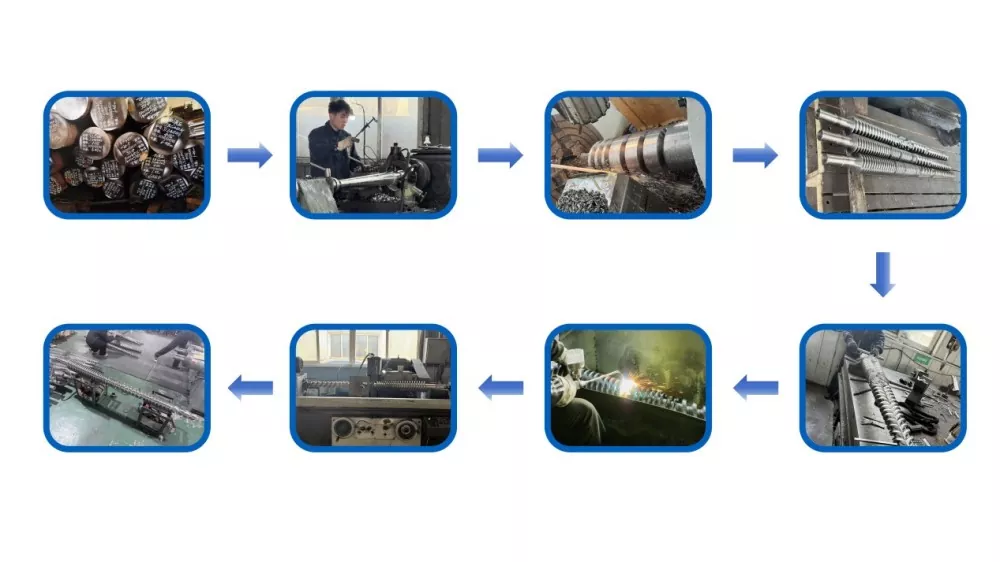

Cov khoom tseem ceeb yog ua los ntawm 38CrMoAla steel, hlau alloy nrog siab tensile lub zog thiab hnav tsis kam, los xyuas kom meej lub kav ntev thiab kev ntseeg siab ntawm cov ntsia hlau thiab chim. High precision machining yog yuav tsum tau rau lub hauv paus thiab planetary screws, siv tig, milling, thiab sib tsoo los xyuas kom meej qhov zoo thiab qhov ntev ntawm qhov tseeb.

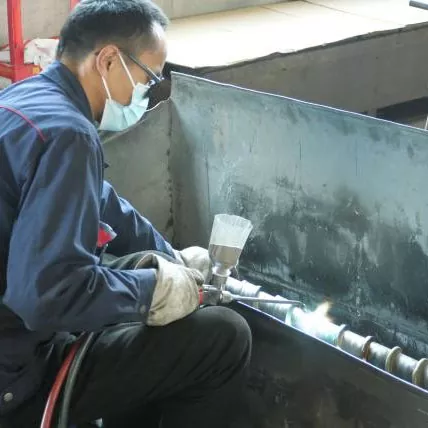

Nanhaiya feem ntau ua qhov kev kho saum npoo ntawm kev sib hloov ntawm lub ntiaj teb cov ntsia hlau thiab cov thoob los txhim kho lawv cov hnav tsis kam, corrosion resistance, thiab deg hardness. Lub ntsiab ntsia hlau feem ntau yog muab ob npaug rau-nitrided, thaum cov ntsia hlau uas tau tsav los ntawm cov txheej txheem quenching thiab nitriding. Qhov chaw nres nkoj tawm yog electroplated rau kev tiv thaiv corrosion.

Parameter (Specification)

Feature thiab Application

Qee qhov ntawm Nanhaiya qhov hloov pauv ntiaj teb cov ntsia hlau muaj qhov tshwj xeeb ntsia hlau los yog cov hniav profile. Cov no siv lub hauv paus loj ntsia hlau ncig los ntawm ntau lub me me screws. Cov ntsia hlau me me no tig mus rau hauv ib qho kev tswj xyuas raws li cov kauv grooves ntawm lub thoob sab hauv phab ntsa, faib cov khoom mus rau ntau ntu kom ua tau zoo dua thiab sib xyaw shearing thiab sib tov.

Los ntawm lawv cov qauv optimized thiab tswj qhov kub thiab txias, cov kev hloov pauv ntawm lub ntiaj teb no tuaj yeem tswj cov khoom siv kub thiab lub sijhawm nyob hauv extrusion, txo qhov kev pheej hmoo ntawm degradation ntawm cov ntaub ntawv kub-rhiab. Piv txwv li, hauv qab ntawm cov khoom siv pub mis yog txias kom tsis txhob muaj cov khoom siv hluav taws xob (xws li PVC) los ntawm kev kub hnyiab hauv cov khoom noj.

Qee qhov kev hloov pauv ntawm lub ntiaj teb cov ntsia hlau muaj qhov tshwj xeeb tso tawm qhov chaw nres nkoj thiab ib qho tshwj xeeb sab hauv kauv sealing hau. Cov chaw nres nkoj no tuaj yeem hloov pauv tau yooj yim qhib lossis kaw raws li cov txheej txheem tsim khoom tiag tiag, tshem tawm cov pa roj thiab noo noo tsim tawm thaum lub sijhawm sib xyaw thiab txhim kho cov khoom zoo.

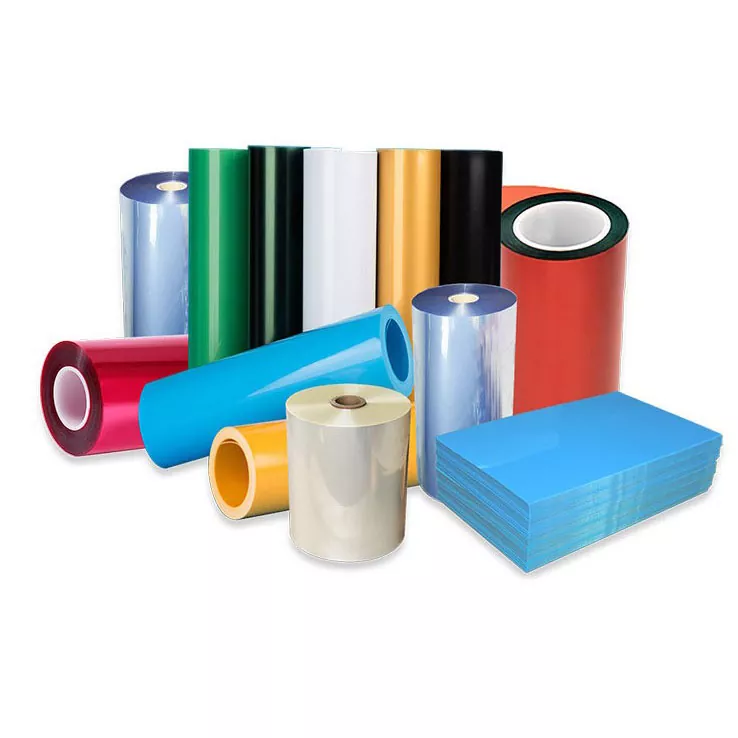

Nanhaiya's mutated planetary screws kuj tuaj yeem siv rau hauv cov ntawv PVC, PET los xij, EVA los xij, yas granulation, cov khoom ua haujlwm siab, cov khoom siv roj hmab, cov khoom siv hluav taws xob, cov khoom siv tshuaj, kev lag luam tshuaj, cov ntaub ntawv sib xyaw, kev ua ntoo thiab lwm yam. Lawv yog siv los ua cov nplaum nplaum, silicone resins, cable rwb thaiv tsev kua nplaum, cov ntaub ntawv ntoo-yas thiab lwm yam ntaub ntawv.

Khoom Paub meej

Advanced tempering, precision machining, thiab nitriding txheej txheem xyuas kom meej qhov kev ua tau zoo ntawm cov khoom tseem ceeb.

Lub ntsiab ntsia hlau txais kev kho ob zaug nitriding, cov ntsia hlau tsav tau txais quenching + nitriding txheej txheem, thiab qhov chaw nres nkoj tawm yog electroplated rau kev tiv thaiv corrosion.
