Standard Planetary Ntsia Hlau

Cov txheej txheem planetary ntsia hlau no yog tsim los ntawm 38CrMoAla steel. Cov khoom siv raw yog qhov tseem ceeb rau kev ua haujlwm ntawm cov ntsia hlau, thiab peb xaiv cov hlau uas muaj zog thiab hnav-resistant los ntawm cov neeg tsim khoom nrov hauv Suav teb uas ua tau raws li cov qauv hauv tebchaws (GB / T 3077).

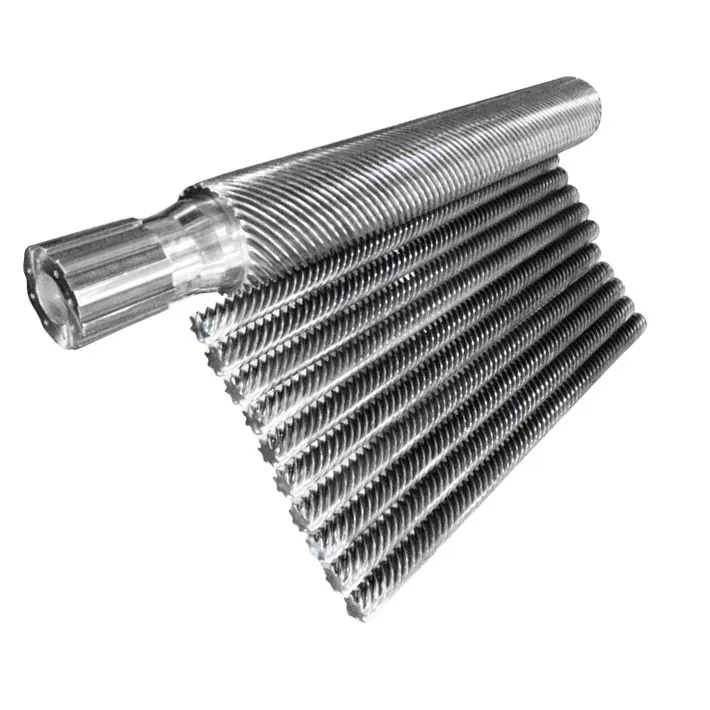

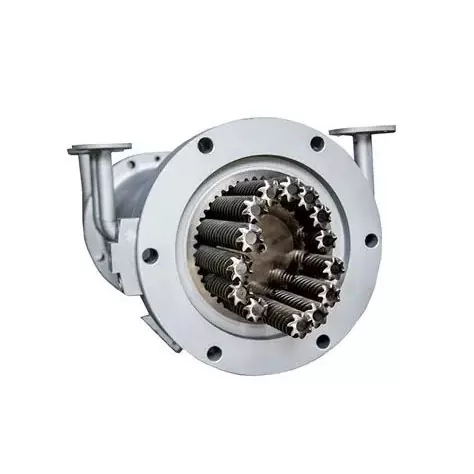

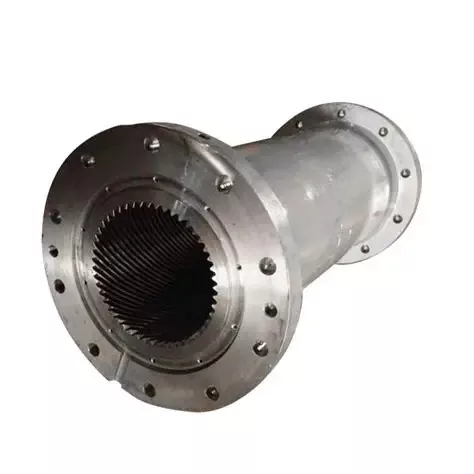

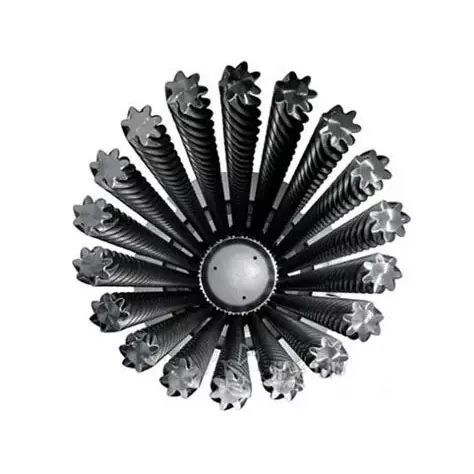

Nanhaiya tus qauv planetary ntsia hlau muaj lub hauv paus ntsia hlau, ntau lub ntiaj teb ntsia hlau, thiab lub thoob nrog cov hniav. Tus naj npawb ntawm planetary screws yog proportional rau txoj kab uas hla ntawm lub planetary ntu, feem ntau yog li ntawm 6 mus rau 18. Qhov clearance ntawm cov ntsia hlau thiab chim hniav feem ntau yog 0.2-0.4 hli. Cov ntu planetary tuaj yeem tsim los ua ob ntu ntu, nrog lub nplhaib disperser nyob nruab nrab ntawm. Lub nplhaib disperser no ua rau muaj zog rov qab, txhim kho cov khoom shear, txhawb kev yaj ua ntej, thiab txhim kho kev sib xyaw thiab kev ua haujlwm degassing.

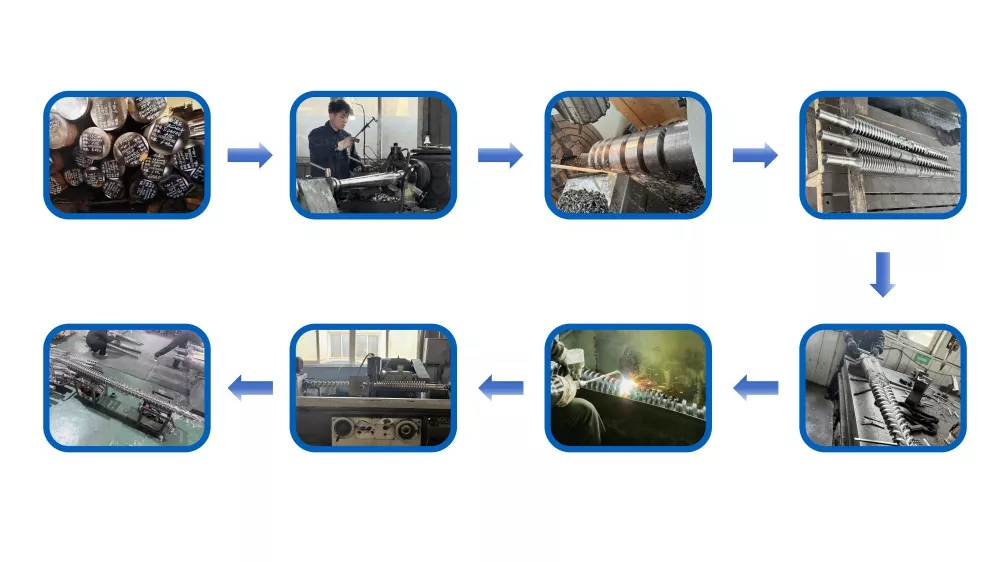

Cov khoom tseem ceeb yog ua los ntawm 38CrMoAla steel, hlau alloy nrog siab tensile lub zog thiab hnav tsis kam, los xyuas kom meej lub kav ntev thiab kev ntseeg siab ntawm cov ntsia hlau thiab chim. High precision machining yog yuav tsum tau rau lub hauv paus thiab planetary screws, siv tig, milling, thiab sib tsoo los xyuas kom meej qhov zoo thiab qhov ntev ntawm qhov tseeb.

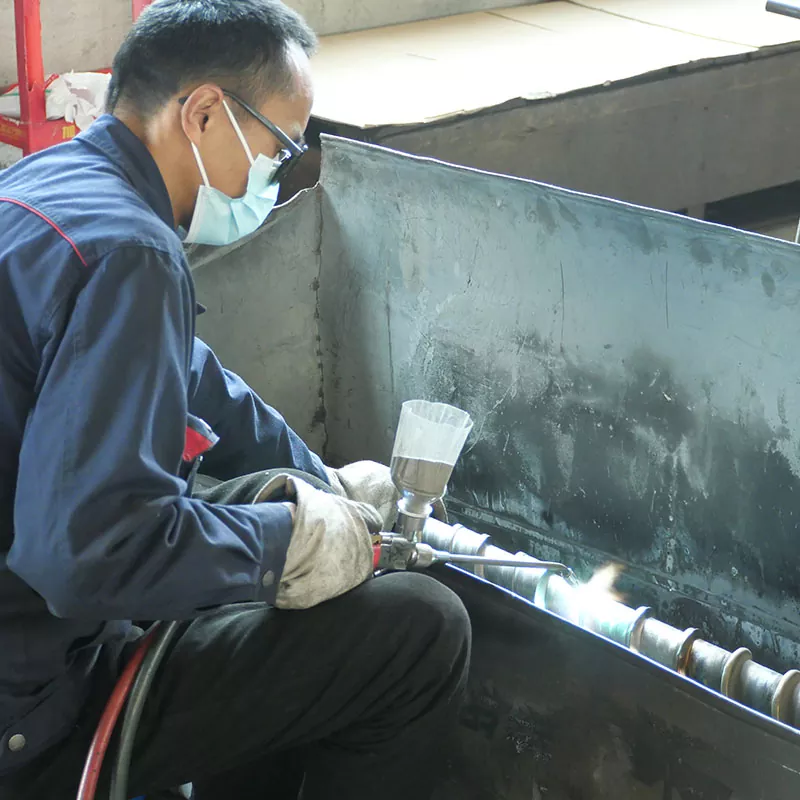

Nanhaiya feem ntau ua cov kev kho saum npoo ntawm cov qauv planetary screws thiab chim los txhim kho lawv cov hnav tsis kam, corrosion resistance, thiab deg hardness. Lub ntsiab ntsia hlau feem ntau yog muab ob npaug rau-nitrided, thaum cov ntsia hlau uas tau tsav los ntawm cov txheej txheem quenching thiab nitriding. Qhov chaw nres nkoj tawm yog electroplated rau kev tiv thaiv corrosion.

Parameter (Specification)

Feature thiab Application

Nanhaiya tus qauv planetary screws muaj ib lub hauv paus ntsia hlau, 6-18 planetary screws (tus naj npawb yog proportional rau txoj kab uas hla ntawm lub planetary ntu), thiab ib tug toothed chim. Lub meshing clearance yog precisely tswj ntawm 0.2-0.4mm, xyuas kom meej cov khoom txaus shearing thaum tiv thaiv hnav ntau dhau.

Peb siv lub segmented functional tsim, muab faib ua ib seem noj thiab ib tug planetary seem, sib cais los ntawm ib tug thermal rwb thaiv tsev txheej. Cov seem pub mis yog lub luag haujlwm rau kev noj zaub mov ruaj khov, thaum cov seem ntawm lub ntiaj teb tsom mus rau kev sib xyaw ua ke. Cov kev faib ua haujlwm sib txawv no tiv thaiv kev cuam tshuam ntawm ob. Peb cov kwj dej channel tsim kom tshem tawm cov ces kaum tuag thiab qhov chaw nyob ruaj khov, thiab muaj peev xwm tu tus kheej muaj zog, txo cov khoom seem thiab ua kom yooj yim ntxuav thaum hloov khoom siv. Qhov no ua rau nws tshwj xeeb tshaj yog tsim rau kev ua ntau yam khoom thiab ntau yam ntawm cov yas.

Peb cov txheej txheem planetary screws tsis tsuas yog ua tau zoo ntawm PVC (nruj, semi-rigid, thiab mos), tab sis kuj sib xws nrog ntau yam yas, xws li ABS, TPO, TPU, thiab ntim polyethylene. Qhov no tshem tawm qhov xav tau ntawm cov tub ntxhais nquag hloov pauv, txo cov nqi hloov khoom siv.

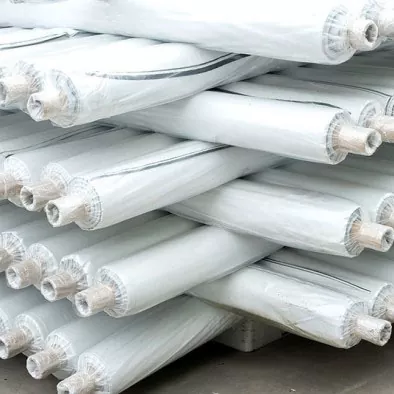

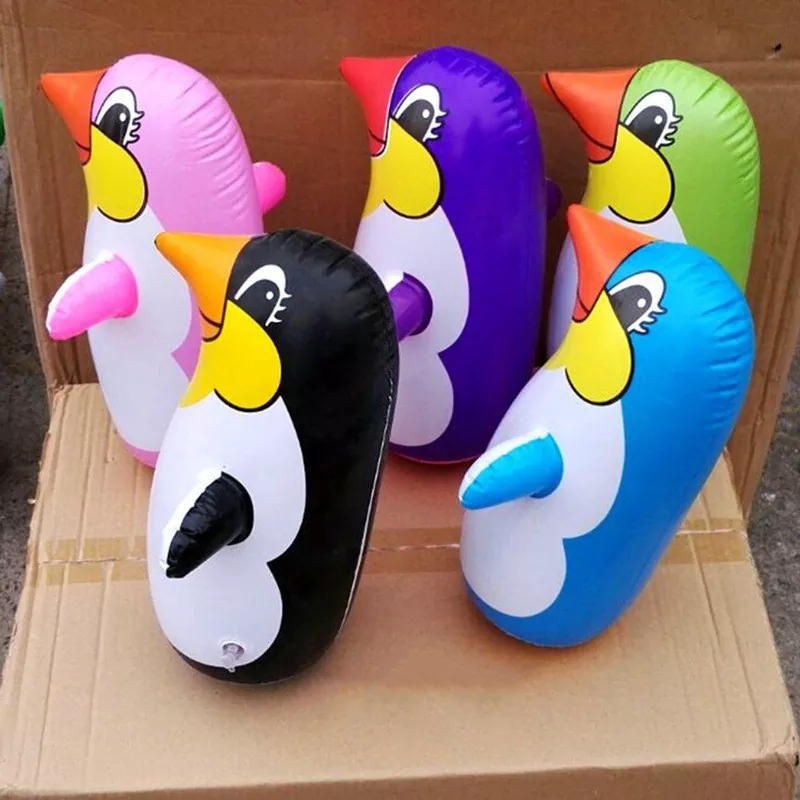

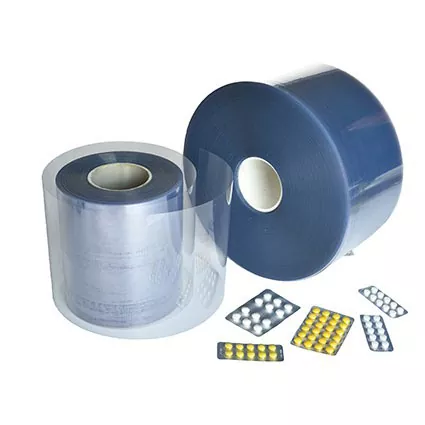

Peb cov khoom kuj tseem yoog tau zoo, ua kom cov khoom sib xws thiab lub cev muaj zog thoob plaws ntau yam kev siv, los ntawm cov ntaub ntawv (xws li PVC blister nplooj thiab cov yeeb yaj kiab kho mob) thiab cov yeeb yaj kiab (cov yeeb yaj kiab ua liaj ua teb thiab ntsev) rau cov nplaum nplaum thiab cov khoom ua si inflatable. Cov ntaub ntawv no ua tau raws li cov kev cai zoo yas substrate ntawm kev lag luam hauv qab.

Khoom Paub meej

Advanced tempering, precision machining, thiab nitriding txheej txheem xyuas kom meej qhov kev ua tau zoo ntawm cov khoom tseem ceeb.

Lub ntsiab ntsia hlau txais kev kho ob zaug nitriding, cov ntsia hlau tsav tau txais quenching + nitriding txheej txheem, thiab qhov chaw nres nkoj tawm yog electroplated rau kev tiv thaiv corrosion.
